Introduction
Stone coated metal roofing materials are based on the aluminum zinc steel plate and through the protective film upper and lower treatment as well through the perfect high technology of compressing and ceramic sand get together, then form one of the best roofing materials.
The productive film is attached to the surface of 55% aluminum zinc steel plate. The surface layer of use the environmentally materials glue, then cover the ceramic sand.
Product brochure
pdf download HERE
More about products
Please follow this LINK
Structure

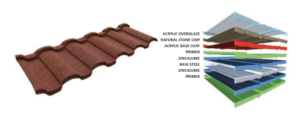

Coating Layers of Stone Coated Metal Tile Roof
Specification & Types & Colors
Thickness: 0.4 mm (0.45 mm and 0.5 mm available)
Tile Size: 16 – 1/2″ x 52 – 3/4″ (420 mm x 1.340 mm)
Installed Exposure: 14 – 1/2″ x 49 – 4/5″ (370 mm x 1.265 m)
Tile per Square: 19,86 (2.13/m2)
Installed Weight: 122.6 lbs/sq (5.96 kg/m2)

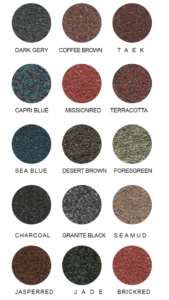

Color Palette

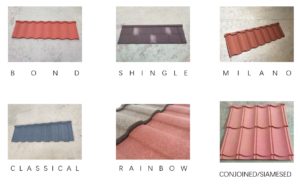

Relief Type
Note:
Made to Measure. More sizes and colors available! We can change sizes and modify designs to suit your scheme.

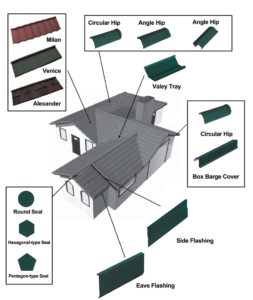

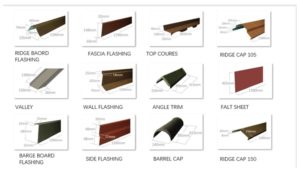

Accessory
Features
Manufactured with the finest aluminum zinc alloy-coated steel covered with ceramic-coated stone granules, uni-roof series offer a texture, style and longevity not found in traditional metal roofing products.
